40W Integrated Solar Street Light

*Type: Solar
*Power: 40W
*Light Source: PHILIPS 3030 195lm/W
*Lumen: 4000lm-4800lm
*Color temperature: 5000K (full color temp. range 2700~6500K available)
*Light Body Material: Aluminum Alloy

Detail >


FEATURES & ADVANTAGES


  • 4,800 LM max lamp lumen high brightness
  • 100,000+ Hours long LED lifespan, with professional heat dissipation design
  • 25 Years long product lifespan
  • 3,000+ Cycles life LiFePO4 batteries with inbuilt Micro-BMS technologies
  • 99.9% MPPT solar charge efficiency
  • IP68 rated controller vs. IP66 rated electrical compartment
  • 5+ Days cloudy/rainy days autonomy
  • IES Type 1~5 with professional optical designs available to match different project requirements
  • Flexible & Customized Working Modes with timer and motion sensor by programming
  • IoT Control and online remote monitoring as optional via ZigBee or LoRaWAN


TECHNICAL SPECIFICATIONS

SUPERIOR (SILVER) Series MODEL NO. ISSL-SPR-040C
LED Light Source Rated Power 12V/ 40W  (36LEDsx2 modules)
LED Brand PHILIPS 3030 (LED Lumen: 195lm/W)
Lumens(LM) 4000-4800lm
Life-span 100,000 hours
Viewing Angle 140°  (Customized Angles  & IES Types Available)
Solar Panel Power 18V/60Wp Monocrystalline PV
Life-span 25 years
Batteries Capacity/Type 12.8V/27AH (345.60WH) / LiFePO4 Lithium
Life-span 8+ years (3,000 circles @ 60% DoD)
Controller Type MPPT / IP68/IoT Online Monitoring as Optional
Sensor Microwave Radar (PIR & Timing as optional)
Full Charge Time By Solar 6 hours (STC: 1000W/, 25 )
Discharge Time Dim Mode >75 hours
Bright Mode >15 hours
Working Temp. -30~+80
Color Temp. Daylight White 5000K full color temp. range 2700~6500K available)
Mounting Height/Brackets 67 m/ Available Brackets: Post Top/ Arm/ Arm Tube/ Pole Clamps
Space Between Lights 2530m
Materials aluminium alloy
Certificate CE / ROHS / IP66/TUV-SUD ISO9001/ ISO14001
Warranty 3 OR 5 years

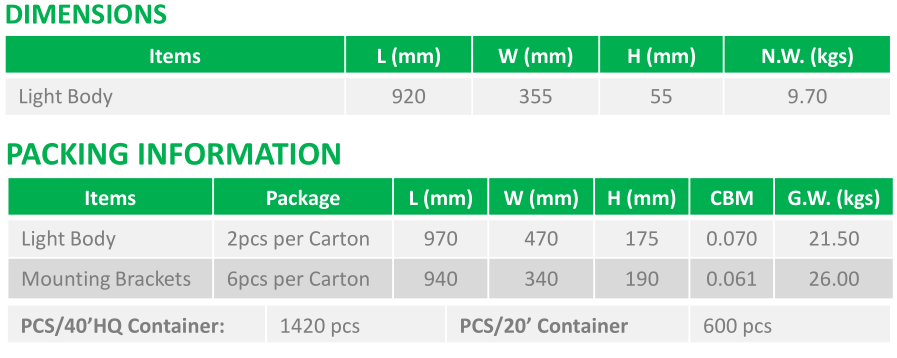

Packing & Weight Light Body Size: 920*355*55mm
Net Weight 13.6kg (Light: 9.7kg, bracket: 3.9kg)
Carton Type Customary Carton/ OEM Acceptable
Carton size Light: 970*470*175mm / Brackets: 960*340*190
Qty/ctn 2 lights in 1 CTN/ 6 brackets in 1 CTN
GW. per Carton Light: 21.5kg/ Brackets: 26.0kgs
PCS per Container 20' GP 600
40' HQ 1420

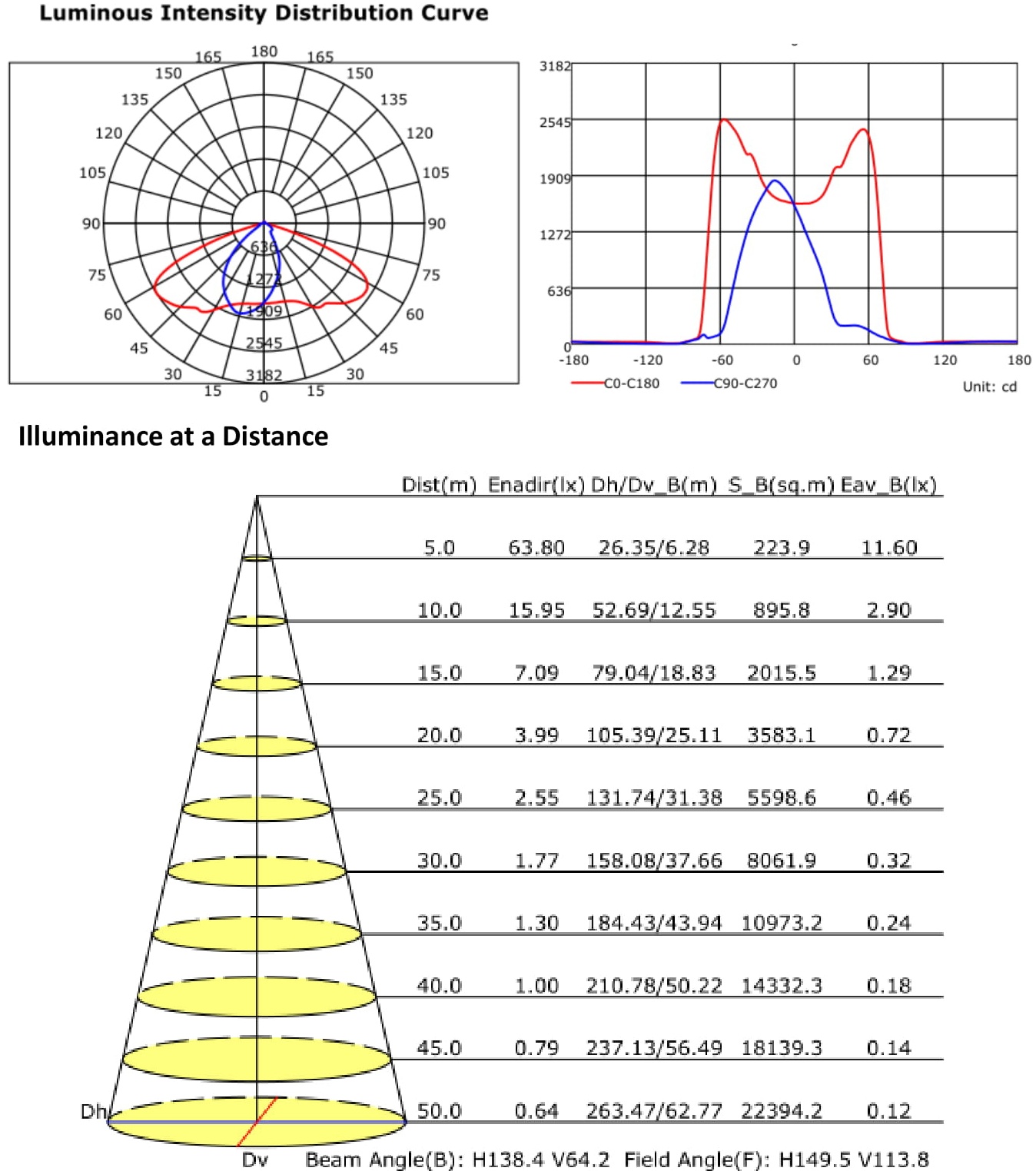

DISTRIBUTIONS & IES TYPE

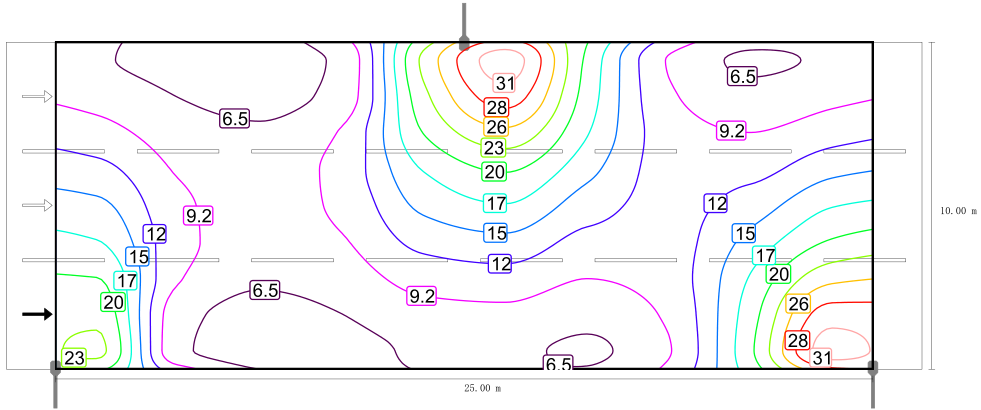

DIALUX SIMULATION REPORT (Valuation Field Roadway)

Pole Height :6m ; Pole Distance :25m; Road Width: 10m; Lanes: 3;
