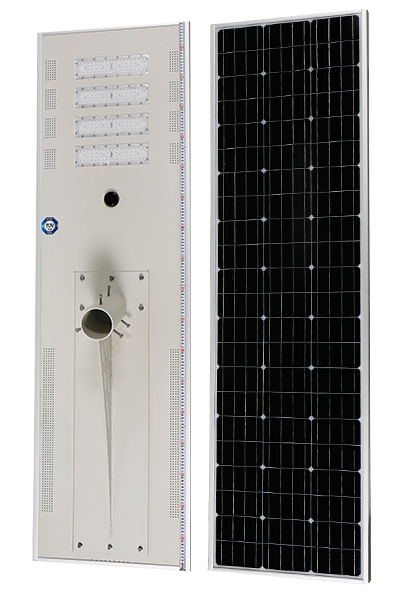

120W Integrated Solar Street Light

*Type: Solar
*Power: 120W
*Light Source: PHILIPS 3030 195lm/W
*Lumen: 12000lm-14400lm
*Color temperature: 5000K （full color temp. range 2700~6500K available)
*Light Body Material: Aluminum Alloy

Detail >

FEATURES & ADVANTAGES

  • 14,400 LM max lamp lumen high brightness
  • 100,000+ Hours long LED lifespan, with professional heat dissipation design
  • 25 Years long product lifespan
  • 3,000+ Cycles life LiFePO4 batteries with inbuilt Micro-BMS technologies
  • 99.9% MPPT solar charge efficiency
  • IP68 rated controller vs. IP66 rated electrical compartment
  • 5+ Days cloudy/rainy days autonomy
  • IES Type 1~5 with professional optical designs available to match different project requirements
  • Flexible & Customized Working Modes with timer and motion sensor by programming
  • IoT Control and online remote monitoring as optional via ZigBee or LoRaWAN

TECHNICAL SPECIFICATIONS

SUPERIOR (SILVER) Series MODEL NO. ISSL-SPR-120C
LED Light Source Rated Power 24V/ 120W (56LEDsx4 modules)
LED Brand PHILIPS 3030 (LED Lumen: 195lm/W)
Lumens(LM) 12000-14400lm
Life-span 100,000 hours
Viewing Angle 140°  (Customized Angles  & IES Types Available)
Solar Panel Power 36V/160Wp （High Efficiency Mono PV）
Life-span 25 years
Batteries Capacity/Type 25.6V/36AH (921.60WH) / LiFePO4 Lithium
Life-span 8+ years (3,000 circles @ 60% DoD)
Controller Type MPPT / IP68/IoT Online Monitoring as Optional
Sensor Microwave Radar (PIR & Timing as optional)
Full Charge Time By Solar 6 hours  (STC: 1000W/㎡, 25℃ )

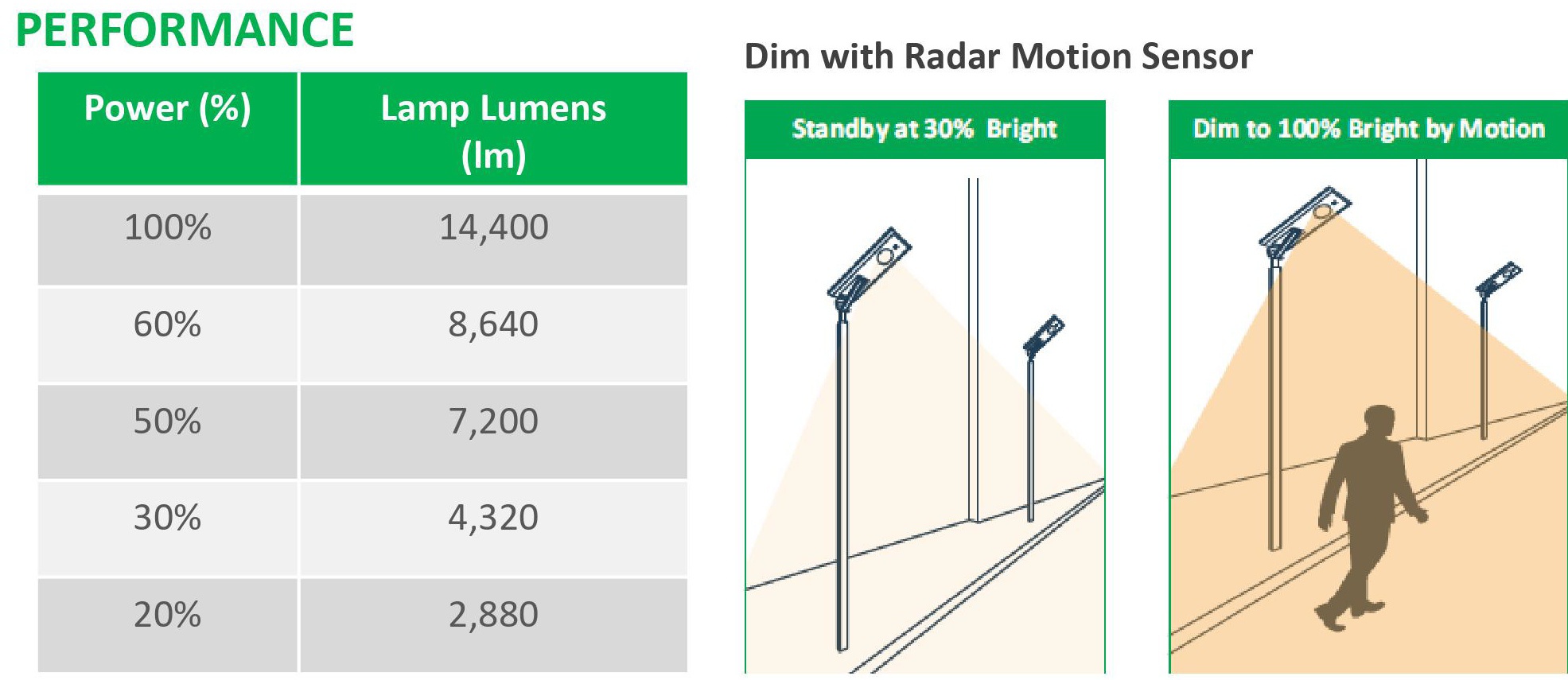

Discharge Time Dim Mode >65 hours
Bright Mode >13 hours
Working Temp. -30℃~+80℃
Color Temp. Daylight White 5000K （full color temp. range 2700~6500K available)
Mounting Height/Brackets 10~12 m/ Post Top Brackets
Space Between Lights 40～45m
Materials aluminium alloy
Certificate CE / ROHS / IP66/ TÜV-SUD ISO9001/ ISO14001
Warranty 3 OR 5 years

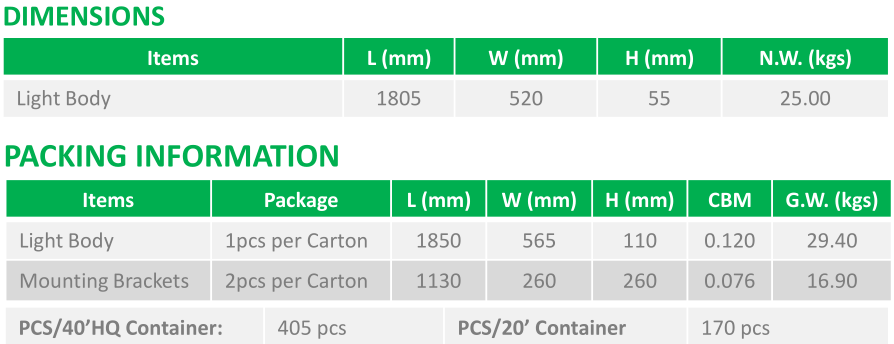

Packing & Weight Light Body Size: 1805*520*55mm
Net Weight 32.9kg (Light: 25kg, bracket: 7.9kg)
Carton Type Customary Carton/ OEM Acceptable
Carton size Light: 1850*565*110mm/ Bracket: 1130*260*260mm
Qty/ctn 1 light in 1 CTN/ 2 brackets in 1 CTN
GW. per Carton 29.4kg+16.9kgs
PCS per Container 20' GP 170
40' HQ 405


DISTRIBUTIONS & IES TYPE

DIALUX SIMULATION REPORT (Valuation Field Roadway)

Pole Height :12m ; Pole Distance :40m; Road Width: 18m; Lanes: 6;
