60W Integrated Solar Street Light

*Type: Solar
*Power: 60W
*Light Source: PHILIPS 3030 195lm/W
*Lumen: 7200lm-8400lm
*Color temperature: 5000K （full color temp. range 2700~6500K available)
*Light Body Material: Aluminum Alloy

Detail >

FEATURES & ADVANTAGES

  • 8400 LM max lamp lumen high brightness
  • 100,000+ Hours long LED lifespan, with professional heat dissipation design
  • 25 Years long product lifespan
  • 3,000+ Cycles life LiFePO4 batteries with inbuilt Micro-BMS technologies
  • 22.5% Efficiency SUNPOWER solar cells
  • 99.9% MPPT solar charge efficiency
  • IP68 rated controller vs. IP66 rated electrical compartment
  • 7+ Days cloudy/rainy days autonomy
  • IES Type 1~5 with professional optical designs available to match different project requirements

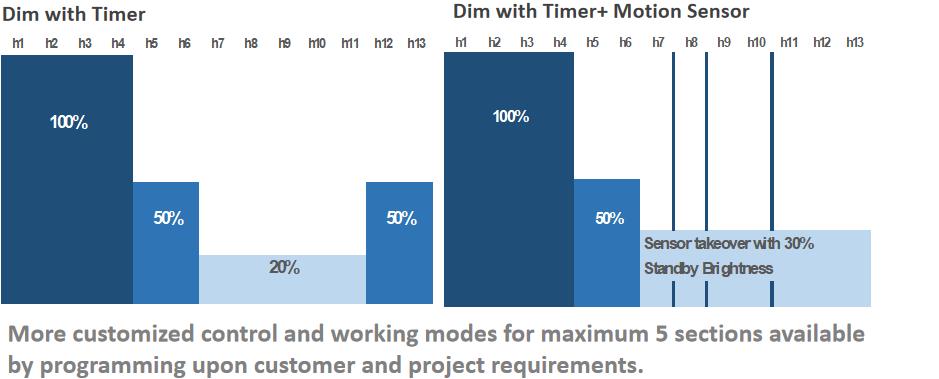

  • Flexible & Customized Working Modes with timer and motion sensor by programming
  • IoT Control and online remote monitoring as optional via ZigBee or LoRaWAN

TECHNICAL SPECIFICATIONS

GOLDEN Series MODEL NO. ISSL-DLX-060C
LED Light Source Max LED Power 60 W (36LEDsx3 Modules)
LED Brand CREE 3030/3535/5050 (LED Lumen: 195lm/W)
Max Lamp Lumen 7200-8400lm
Life-span 100,000 hours
Viewing Angle 140°  (Customized Angles  & IES Types Available)
Solar Panel Power 36V/90Wp  (SUNPOWER, Cell Efficiency: 22.5%)
Life-span 25 years
Batteries Capacity/Type 25.6V/24AH (614.40WH) / LiFePO4 Lithium
Life-span 8+ years (2,000 circles)
Controller Type MPPT / IP68/IoT Online Monitoring as Optional

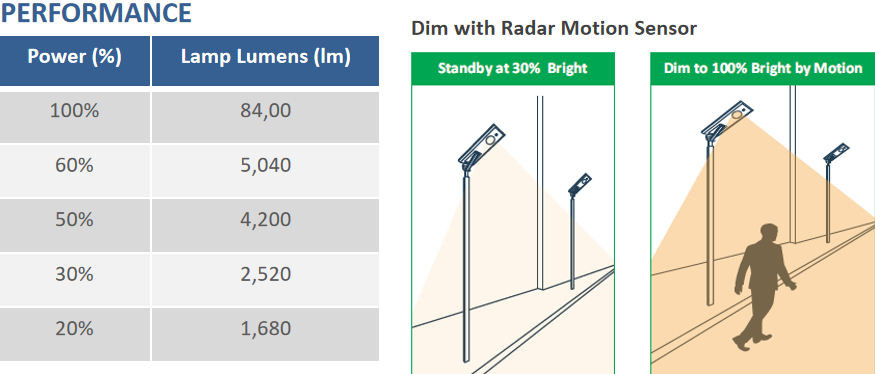

Sensor Microwave Radar (IoT or Timer as optional)
Full Charge Time By Solar 7 hours  (STC: 1000W/㎡, 25℃ )
Discharge Time Dim Mode >75 hours (autonomy>5 cloudy/rainy days)
Bright Mode > 15 hours
Working Temp. -30℃~+80℃
Color Temp. Daylight White 5000K （full color temp. range 2700~6500K available)
Mounting Height/Brackets 8~9 m/ Available Brackets: Post Top/ Arm/ Arm Tube/ Pole Clamps
Space Between Lights 30～35m
Materials Aluminium Alloy
Certificate CE / ROHS / IP66/TUV-SUD ISO9001/ ISO14001
Warranty 5 years

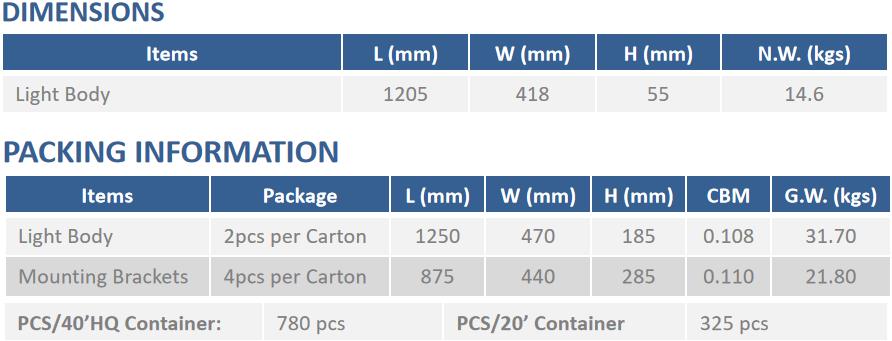

Packing & Weight Product Size 1205*418*55mm
Net Weight 14.6kg
Carton Type Customary Carton/ OEM Acceptable
Carton size Light: 1250*470*185mm / Brackets: 875*440*285
Qty/ctn 2 lights in 1 CTN/ 4 brackets in 1 CTN
GW. per Carton 31.7kgs
PCS per Container 20' GP 780
40' HQ 325

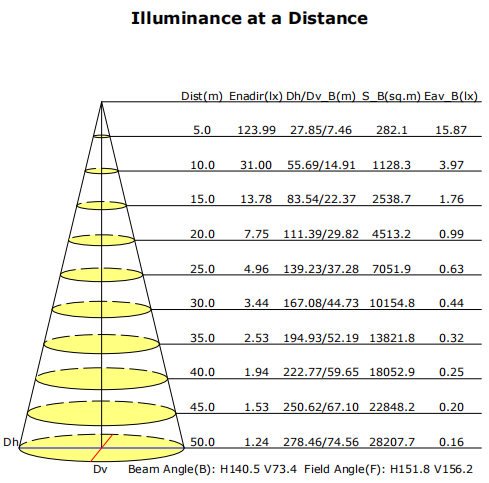

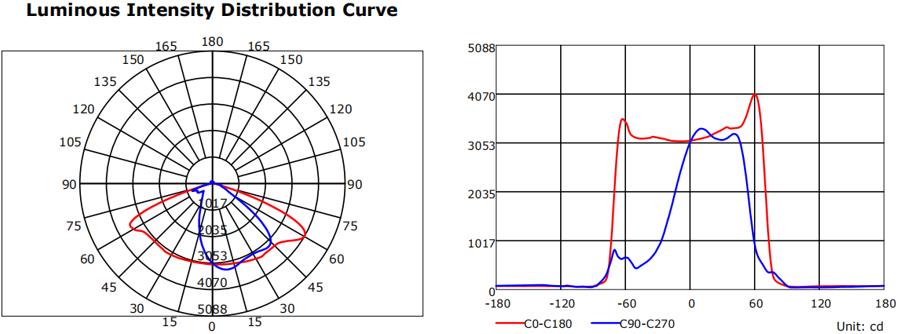

DISTRIBUTIONS & IES TYPE


DIALUX SIMULATION REPORT

Street Profile: ( Tarmac: R3, q0: 0.070)
Pole Height :8m ; Road Width: 14.5m;  Pole Distance :15m; Lanes: 4;

Luminaire Arrangements

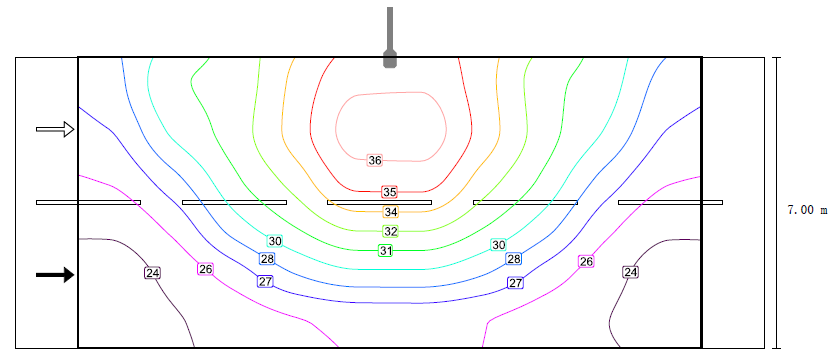

Valuation Field Roadway  / Isolines (E)
