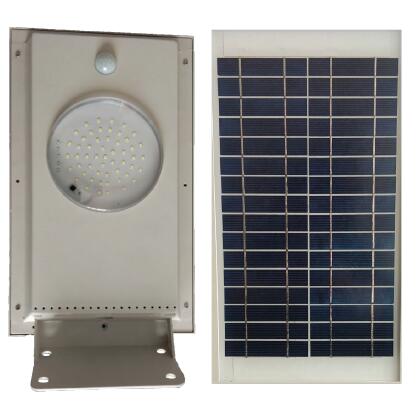

5W Integrated Solar Street Light

Type: Solar
Power: 5W
Light Source: PHILIPS 3030 195lm/W
Lumen: 450lm-500lm
Color temperature: 5000K (2700~6500K available)
Light Body Material: Aluminum Alloy

Detail >


FEATURES & ADVANTAGES

  • 500 LM max lamp lumen high brightness
  • 100,000+ Hours long LED lifespan, with professional heat dissipation design
  • 25 Years long product lifespan
  • 3,000+ Cycles life LiFePO4 batteries with inbuilt Micro-BMS technologies
  • 99.9% MPPT solar charge efficiency
  • IP68 rated controller vs. IP66 rated electrical compartment
  • 5+ Days cloudy/rainy days autonomy
  • IES Type 1~5 with professional optical designs available to match different project requirements

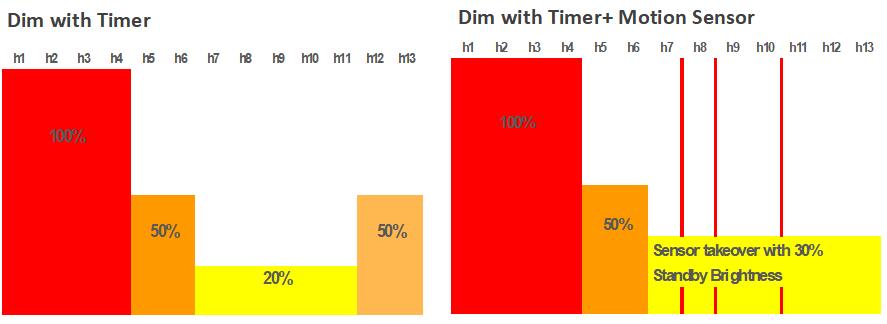

  • Flexible & Customized Working Modes with timer and motion sensor by programming
  • IoT Control and online remote monitoring as optional via ZigBee or LoRaWAN

TECHNICAL SPECIFICATIONS

BRONZE Series MODEL NO. ISSL-BRZ-5W
LED Light Source Rated Power 5W
LED Brand EPISTAR 2835 SMT
Lumens(LM) 450-500lm
Life-span 100,000 hours
Viewing Angle 120°
Solar Panel Power 18V/8Wp (High Efficiency Polystalline PV)
Life-span 25 years
Batteries Capacity/Type 12.80V/6.0AH (76.80WH) / LiFePO4 Lithium
Life-span 8+ years (3000 circles @60% DoD)
Controller Type MPPT / Waterproof class: IP68
Sensor PIR (Timing as optional)
Full Charge Time By Solar 9 hours  (STC: 1000W/, 25 )
Discharge Time Dim Mode >100 hours
Bright Mode >30 hours
Working Temp. -30~+80
Color Temp. Daylight White 5000K full color temp. range 2700~6500K available)
Mounting Height/Brackets 3 m/ Clamp Bracket
Space Between Lights 810m
Materials aluminium alloy
Certificate CE / ROHS / IP66/TUV-SUD ISO9001/ ISO14001
Warranty 3 years
